Solis 5520
Solis
5520
No Challenge is Too Great for Solis
The Power Of Japanese Technology

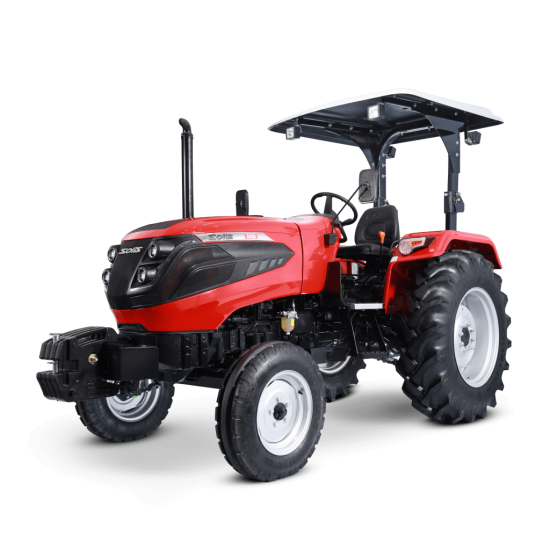

The Solis 5520 is a versatile and durable tractor that can easily handle various tasks. It comes equipped with a powerful engine, responsive transmission, and advanced features, making it an excellent choice for small to medium-sized farms.
3 CYLINDER POWERFUL E3 ENGINE
8F+2R SWIFT SHIFT TRANSMISSION
POWERFULL LIFTING CAPACITY 1600 kg
SLEEK & STYLISH BONNET
Technical Specifications
| Engine HP (Category) | 55 | ||
| No. of Cylinders | 3 | ||
| Rated RPM | 2000 | ||
| Max. Torque (Nm) | 205 | ||
| Air Cleaner | Dry Air Cleaner With Clogging Sensor | ||
| Engine Displacement (cc) | 3067 | ||
| TRANSMISSION | |||
| Max Speed (kmph) | 33.73@2200 | ||
| Clutch Type | Double Clutch | ||
| Gearbox | 8F+2R | ||
| Brake | |||
| Brakes Type | Oil Immersed Brake | ||
| Hydraulics | |||
| Lift Capacity (kg) | 1800kg | ||
| 3 Point Linkage | CAT II | ||
| Hydraulic Controll | ADDC | ||
| Steering | |||
| Steering | Power | ||
| PTO | |||
| PTO Standard RPM | 540 | ||
| MSR PTO | Optional | ||
| Tyre | 4WD | 2WD | |
|
Tyre
|
Front | 7.5*16 | 9.16*24 |
| Rear | 16.9*28 | 16.9*28 | |
| Fuel Tank | |||
| Capacity (L) | 55 | ||
| Total Weight Kg | 2250-2380 | ||
| Wheel Base (mm) | 2074 | ||
| Length (mm) | 3885 | ||
| Width (mm) | 1850-1900 | ||
| Front ballast weight | 4×29 Kg | ||
